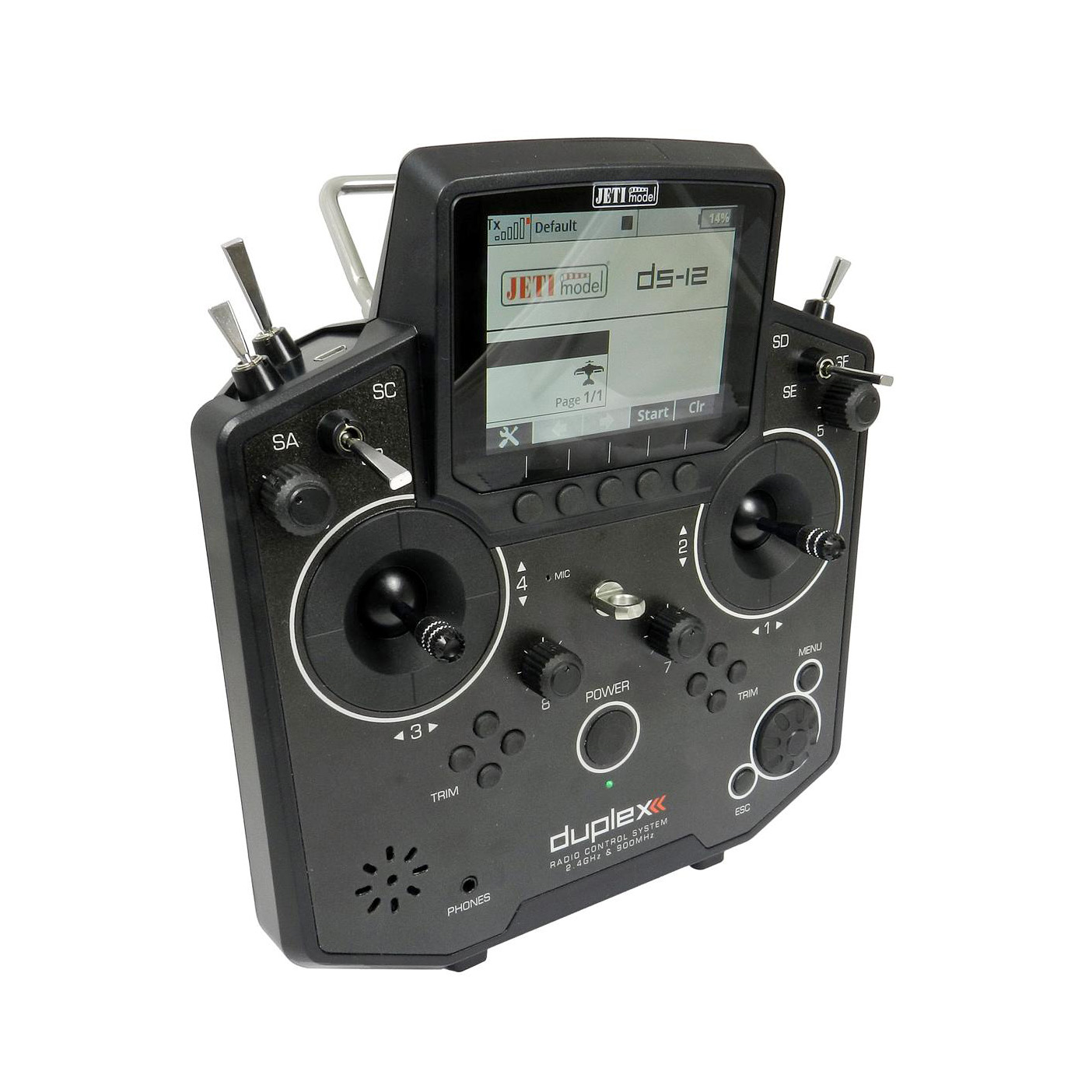

DS transmitters take full advantage of the 2.4 GHz EX Duplex system. They offer an advanced user interface that allows many options for setting up the model, viewing online and offline telemetry from the model, playing audio files, assigning alarms and more. The transmitters were developed with a focus on maximum utility properties, with an emphasis on simple operation, maximum service life and reliability of mechanical parts. The metal casing provides maximum protection as well as surface protection against chemicals, while simple shapes provide easy maintenance. Cross controllers with ball bearings and Hall magnetic sensors suggest the evolutionary concept and design of this most strenuous element of the RC kit.
The backlit LCD display located on the top of the transmitter offers perfect readability in any light and a large viewing angle. Thanks to the fine resolution of the display and the use of a large amount of graphics, it was possible to create simple and intuitive settings and further display of telemetry data. With the products of the DUPLEX EX series, the possibilities in the area of telemetry data transmission and their subsequent processing both on LCD transmitters and by means of analysis on a computer (JETI studio) are expanded. The transmitter allows you to set sound notifications (and user-defined sounds) related to both the current telemetry values and the assignment of sounds to the states of individual controls.
The transmitters of the DS series are in thumb steering. These transmitters can be placed in a tray for these transmitters. DS-12 offers a unique concept of individual setting of properties according to the requirements of each customer. The transmitter is offered in a basic configuration that meets the requirements of most users of different types of models. A configurator has been created for individual transmitter settings, which can be found on the website swshop.jetimodel.com. After a simple registration of your transmitter, it is possible to select the expansion features according to your own requirements.
Manual can be downloaded here.
Key Features
- Weight: 700g
- Integrated battery: 6200mAh
- Display: 3.5" 320x240px
- Memory: 8GB
- Hall gimbals
- Size: 194x215x55mm
- Number of channels: 8-16
- Transmission frequency: 2.4GHz/900MHz
- RF modules 2.4GHz/900MHz: 2/1 (next generation) 863 - 870 MHz (EU)
- Number of 2.4GHz/900MHz antennas: 2/1
- MOD2
Package Includes
- 1x Transmitter
