VLV F3A ESC HV 80A
SKU: F3A03
The product can not be ordered.

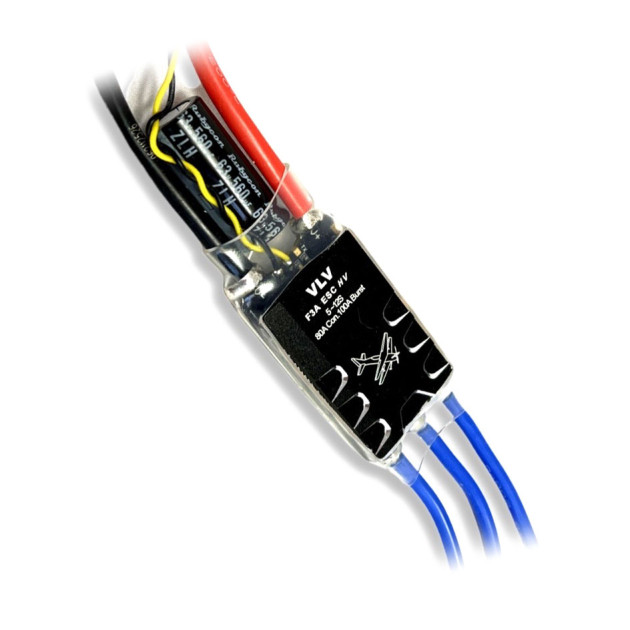

VLV F3A ESC HV 80A is a powerful and ultra light ESC with a modern ARM 32-bit processor. The ESC supports 5-12S Lipo batteries and a current load of 80A. The ESC is not equipped with BEC. The ESC has gold-plated bullet connectors for easy motor connection.
This ESC is custom made for the VLV Contra drive Competition. It features thermal protection and over-discharge protection triggered at 3,3V per cell. It works in "governor" mode, where propeller RPM respond directly to your throttle stick position.
Key Features
- Size: 55x28x10mm
- Current: 80A (100A peak)
- Weight: 25.5g (without cables), 68g (with cables)
- Voltage input: 5-12S Lipo
- Mode of operation: Governor
- Over discharge protection: 3.3V per cell
- Thermal protection
- Connectors: 4mm Bullet
Package Includes
- 1x ESC
