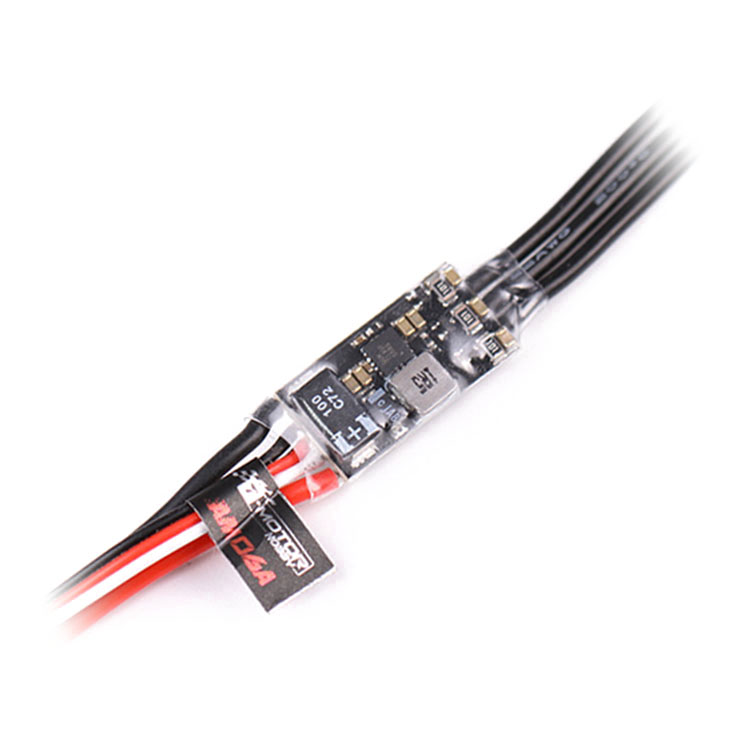

T-Motor AM06A F3P-A is a small 6A ESC designed primarily for indoor airplanes. The weight of the ESC is only 1.1 grams without the cables. The ESC can be powered by 1-2S Lipo batteries. The 1.5A BEC provides a voltage of 5.2V when using 2S or 1S battery. The BlHeli_S firmware takes care of fast, accurate and reliable motor control. BLHeli_S is widely used among racing FPV drones, where it can withstand even the most demanding conditions.
Key Features
- Constant / burst current: 6A / 8A
- Lipo Cells: 1-2S Lipo
- Weight: 1.1g (without cables)
- BEC: 5.2V / 1.5A
- Dimensions: 18.5x9.5mm
- Programmable parameters
- Battery connector: JST
- Battery cables: 8cm 0.34mm2 (22AWG)
- Motor cables: 4cm 0,34mm2 (22AWG)
- Signal cables: 12cm
Package Includes
- 1x ESC
