Timer
SKU: SP96
In Stock
€ 25,50

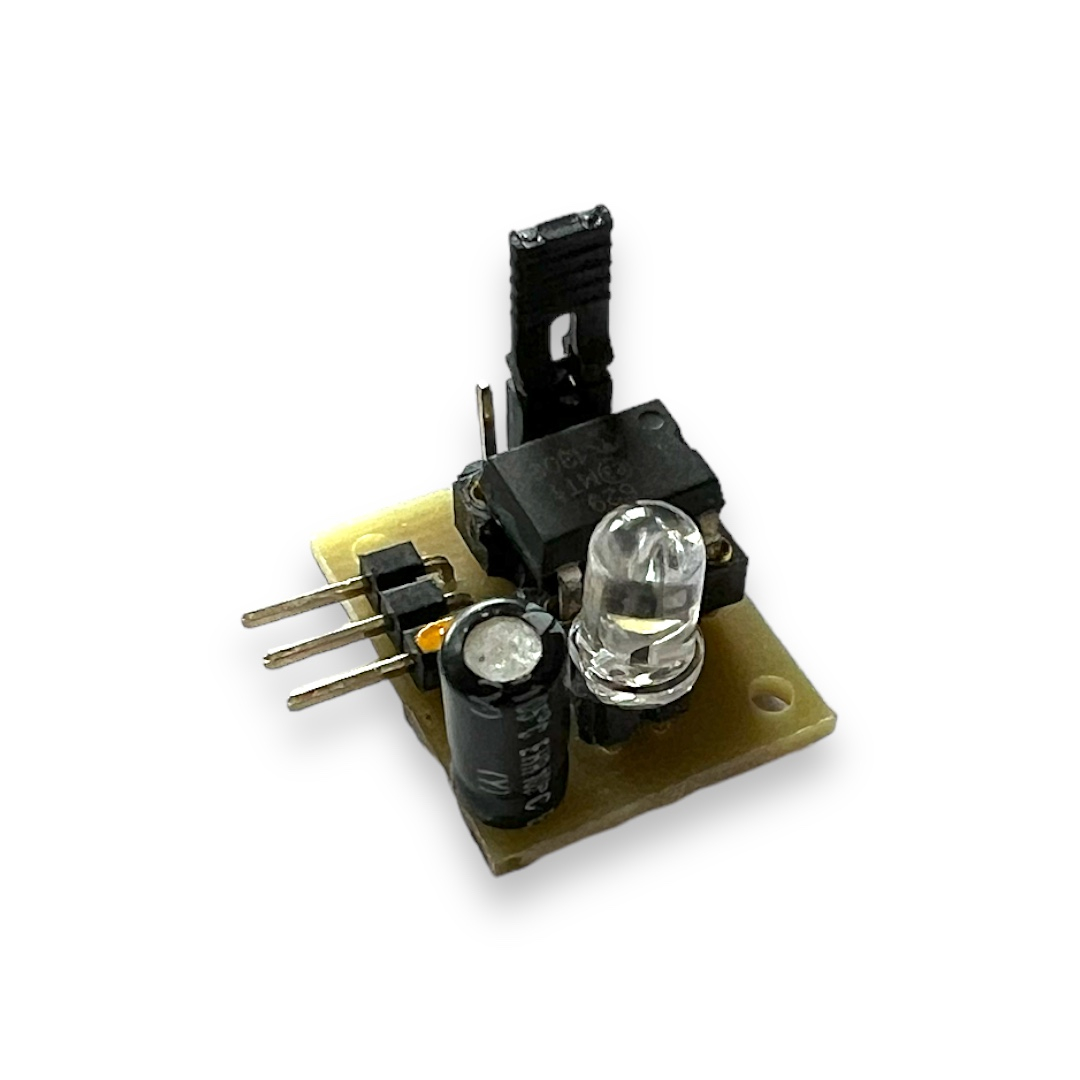

Electronic timer for Control Line models
- Electronic timer for controlling an AC controller
- Easily adjustable flight time and delay from battery connection to actuator start-up
- Suitable for Flash CL ( control line )
Key Features
Flight length setting:
- plug the jumper into the pins closer to the controller connector
- Connect the drive battery
- from the time the propeller is turned, wait for the time you want as flight time (if I want to fly 2 minutes, I wait 2 minutes)
- pull the jumper off the pins to save the settings
- disconnect the propulsion battery
- Flight time is set now you can remove the jumper to the accessory, plug in the battery without the jumper and hooray for the air!
Setting the length of the launch delay:
- plug the jumper into the pins further away from the controller connector
- connect the drive battery
- after spinning the propeller, use a screwdriver to connect the 2 pins closer to the controller connector for 20s delay, then to the controller for 40s delay
- pull the jumper from the pins to save the settings
- disconnect the drive battery
